Medium
State the gas or liquid and cleanliness requirements.
Available supply
Porous Flow Restrictors and Dampers
Selection uses the medium, inlet and outlet conditions, required flow and connection arrangement. The category does not define universal ratings; the specific configuration is confirmed in the formal quotation.
Available configuration range
Accessories for restricting or stabilizing flow, reviewed for the operating point.
- Operating point
- Inlet and outlet conditions
- Duty
- Flow restriction or stabilization
- Integration
- Arrangement and connection requirements
Technical specifications
Data for review
Conditions
Provide the inlet and outlet process conditions.
Target
State the required flow or damping behavior.
Selection information
- 01Medium
- 02Inlet conditions
- 03Outlet conditions
- 04Required flow
- 05Connection arrangement
- 06Quantity
Available supply
All accessories
SM-FR-PMR
Porous-Metal Flow Restrictor
- Material
- Porous 316L stainless steel
- Custom configuration
- Sized by inlet pressure and gas
- Application fit
- Passive restriction, stabilization and laminar flow
SM-FR-FIT
Fitting-Body Flow Limiter
- Construction
- Flow limiter for fitting integration
- Material
- High-purity material construction
- Connection
- For use with a VCR fitting
SM-FR-UHP

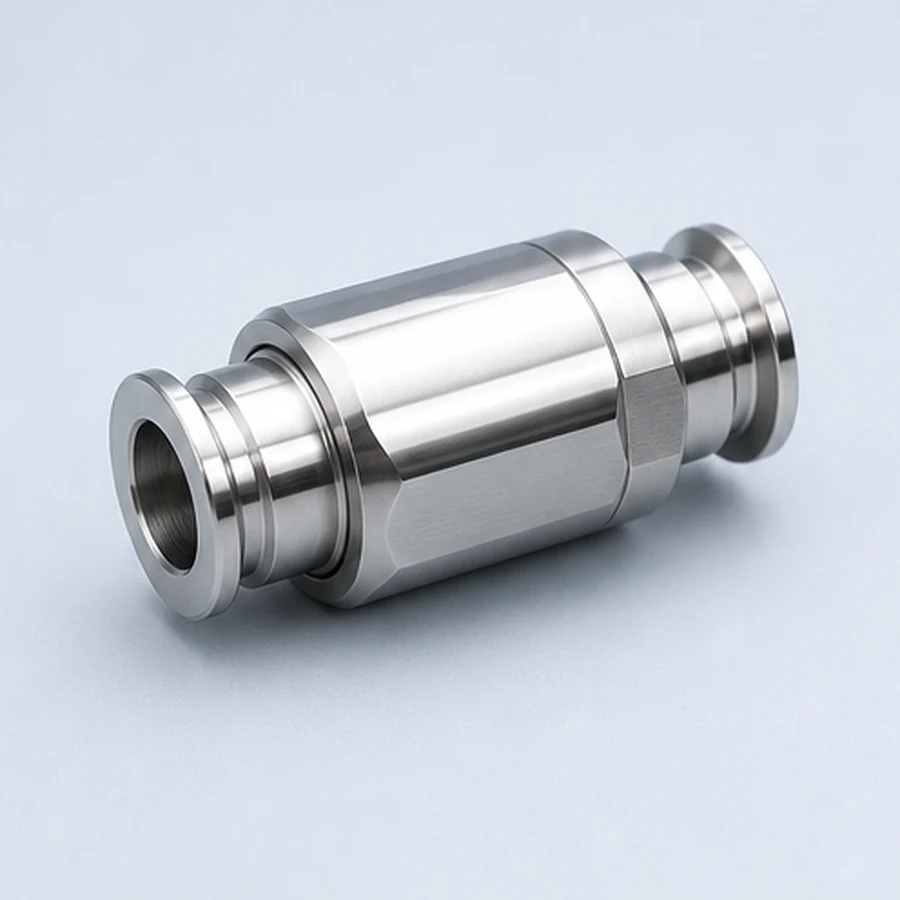

High-Purity Gas Flow Restrictor
- Material
- 316L stainless steel
- Connection
- 1/4 in VCR
SM-FR-DMP
Integrated Damping Fitting
- Application fit
- Damping and flow restriction
SM-FR-ANA

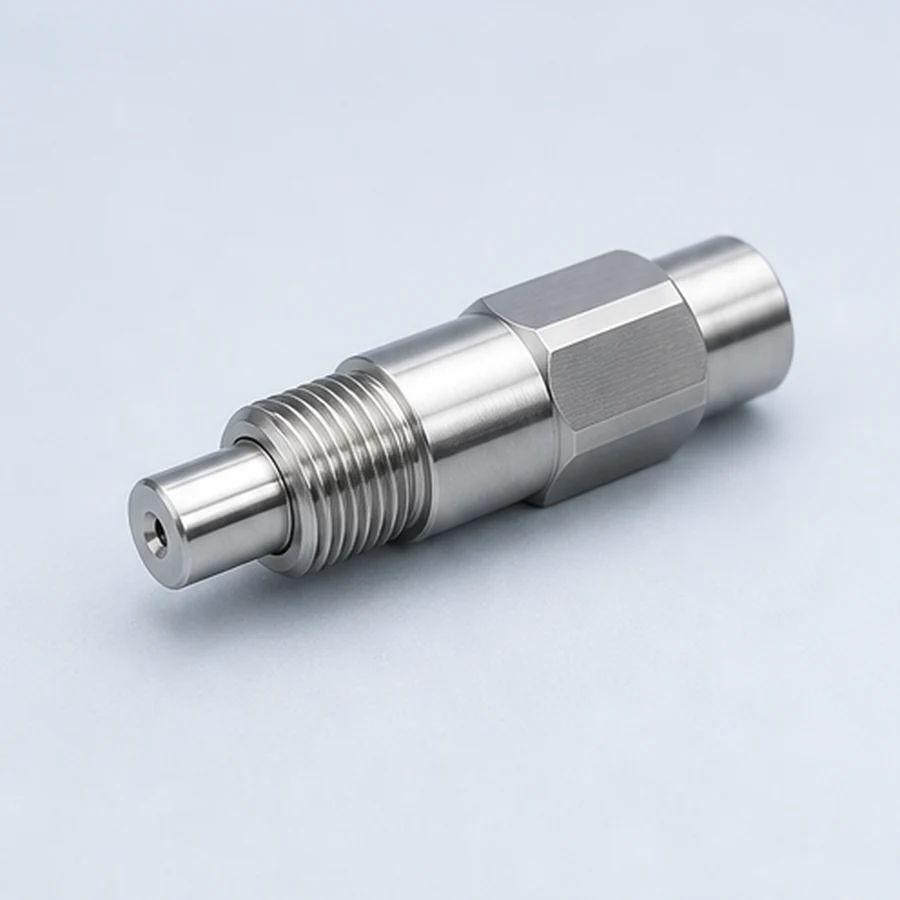

Threaded Restrictor for Analytical Lines
- Material
- 316L stainless steel
- Custom configuration
- Low flow by gas and pressure
SM-FR-ORI

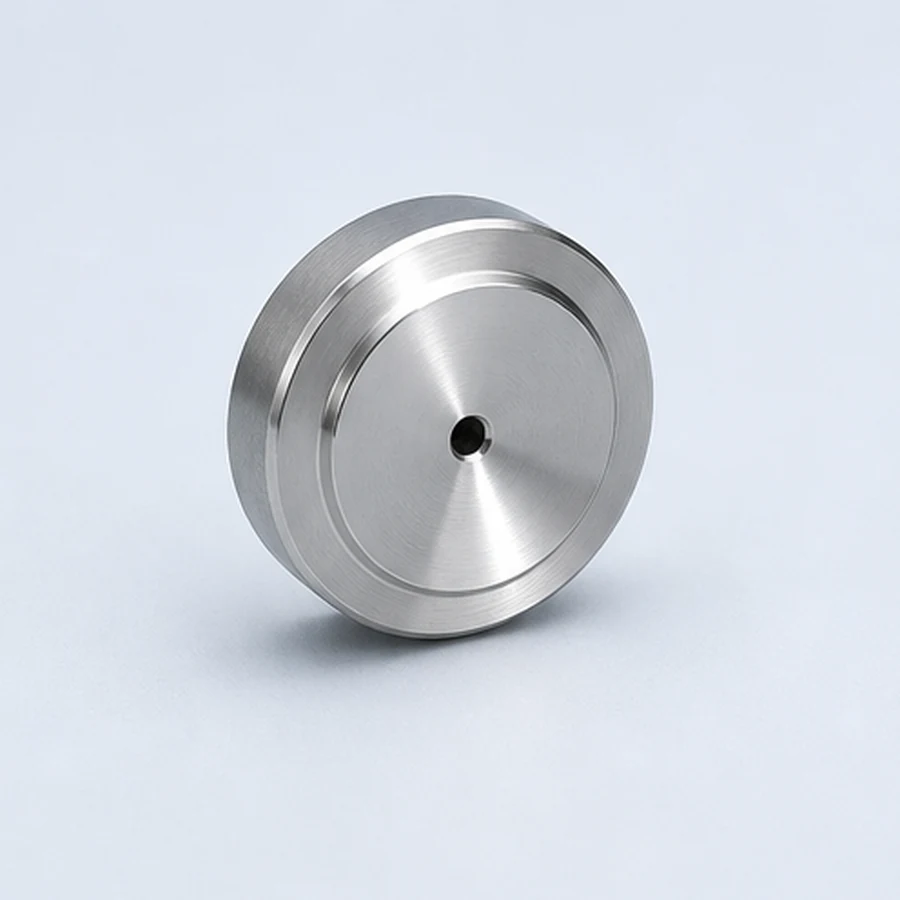

Precision Flow Restrictor
- Material
- 316L stainless steel
- Construction
- Calibrated flow orifice
- Custom configuration
- Confirmed for operating point
